Equipment> 4 Post Vehicle Lifts

All lifts come with a step by step instruction manual. Delivery and installation charges are extra please call for pricing.



Click on images to enlarge.


Atlas® Garage Pro 8000 Portable Hobbyist 8,000 Lbs. Capacity 4 Post Lift - $3,095.00
  • 2 Year Structural/1 Year Hydraulic Limited Warranty
  • Includes Caster Kit With Polyurethane Caster Wheels
  • Single Point Lock Release
  • CE Tested And Approved
  • Double Lock Safety System
  • Garage Pro 8000 Installation
  • Includes Approach Ramps
  • Includes Drip Trays
  • Includes Heavy Duty Jack Tray
  • Includes Rubber Wheel Chocks
  • Includes Wheel Stops
  • Lock Ladder Column Design

Atlas® brand above ground auto lift offers a competitive priced above ground auto lift that offers more features and benefits than the ever increasing number of "economy" auto lifts sold by no-name Internet marketers.

The portable Atlas® Garage Pro 8000 includes a caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes and requires no tools.

All Atlas® portable four post lifts (8,000 lb. capacity) are designed and built for use by Mr. Homeowner or restoration shop. These lifts are not designed to work in commercial repair shops that raise and lower a lift several times per day. If you have questions about which lift will best suit your application, please ask your salesperson.


Atlas® Garage Pro 8,000 Specifications

Capacity 8,000 LB
Lifting Height To Top Of Runway 72" (6')
Clearance Under Runways 67 1/2" (5' 7 1/2")
Height of Columns 83" (6' 11")
Overall Width (Without Motor) 104 3/8" (8' 8 3/8")
Overall Width (With Motor) 114" (9' 6")
Overall Length with Approach Ramps 207 1/2" (17' 3 1/2 ")
Overall Length without Approach Ramps 175 1/2" (14' 7 1/2")
Approach Ramps 37" (3' 1")
Runway Width 21 1/4" (1' 9 1/4")
Runway Length 165 1/2" (13' 9 1/2 ")
Runway Thickness 4 ½"
Width Between Runways 37 3/8"
Width Between Runway Rails 31 3/4"
Outside Runway to Outside Runway 74 3/4" (6' 2 1/4")
Size of Column 6 1/4" x 3 3/8"
Clearance Between Columns 94 1/2" (7' 10 1/2")
Length Between Columns 157 1/2" (13' 1 1/2")
Base of Column 10 1/8" x 11 3/4"
Maximum Wheel Base 153 1/2" (12' 9 1/2")
Drive Thru (Outside of tire to outside of tire) 80 1/2" (6' 8 1/2")
Cable Diameter .350"
Gauge Of Steel 6 Gauge (.1875"/ 3/16" / 4.75mm)
Motor 110 Volt. A 30 amp breaker is required.
Oil Requirement 3-5 Gallons AW32/AW46
Shipping Weight 1,720 LB.




Atlas® Garage Pro 8000 EXT Portable Hobbyist 8,000 Lbs. Capacity 4 Post Lift (EXTRA TALL) - $3,350.00
  • 2 Year Structural/1 Year Hydraulic Limited Warranty
  • Includes Caster Kit With Polyurethane Caster Wheels
  • Single Point Lock Release
  • CE Tested And Approved
  • Double Lock Safety System
  • Garage Pro 8000 EXT Installation
  • Includes Approach Ramps
  • Includes Drip Trays
  • Includes Heavy Duty Jack Tray
  • Includes Rubber Wheel Chocks
  • Includes Wheel Stops
  • Lock Ladder Column Design

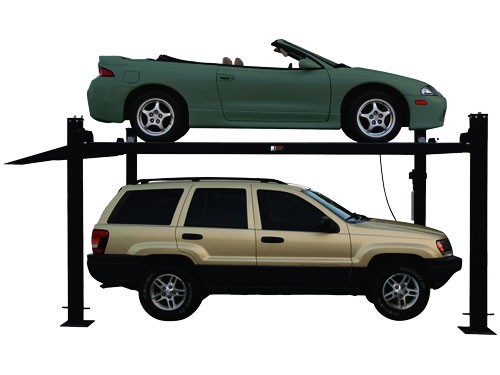

The Atlas® Garage Pro 8000 EXT is a true 8,000 LB. four post lift. The Atlas® Garage Pro 8000 EXT incorporates many of the great features of both the Atlas® Garage Pro 8000 and the Atlas® Garage Pro 9000.

Many of our customers drive an SUV or pick up truck and wanted a storage lift that would "go higher" to allow them to park their taller vehicles under the elevated ramps.

Many of our competitors sell "taller" lifts. However, their "taller" lifts also have longer runways. Our customers requested that we make a lift which lifts higher, but does not need to have longer ramps. (Longer ramps take up needed garage space). Most customers want to store a car on top and park a SUV or pick up truck below. There is no need for longer ramps. Our Atlas® Garage Pro 8000 EXT ramps will accommodate a vehicle with a 156 inch wheel base. The Atlas® Garage Pro 8000 EXT has been engineered to provide 79" of clearance UNDER the bottom of the raised runway, but keep the runway length to just less than 14 feet long.

If you need the extra lifting height of the Atlas® Garage Pro 9000, but do not need the extra width and runway length provided by that lift, then the NEW Atlas® Garage Pro 8000 EXT is the perfect choice.

The Atlas® Garage Pro 8000 EXT is capable of lifting your pick up truck or car 84 1/4 inches. This above ground lift is the perfect choice for storing your vehicle. The extended height feature of the Atlas® Garage Pro 8000 EXT Plus makes this lift the perfect choice for parking taller vehicles under stored vehicles.

The Atlas® Garage Pro 8000 EXT comes standard with a powerful 110 volt power unit. A 30 amp breaker is required.

The portable Atlas® Garage Pro 8000 EXT includes a caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes and requires no tools.

All Atlas® portable four post lifts (8,000 lb. capacity) are designed and built for use by Mr. Homeowner or restoration shop. These lifts are not designed to work in commercial repair shops that raise and lower a lift several times per day. If you have questions about which lift will best suit your application, please ask your salesperson.

Atlas® Garage Pro 8000 EXT Specifications

Capacity 8,000 LB
Lifting Height 84 1/4" (7' 1/4")
Overall Width (Without Motor) 104 3/8" (8' 8 3/8")
Overall Width (With Motor) 114" (9' 6")
Length Between Columns 157 1/2" (13' 1 1/2 ")
Overall Length with Approach Ramps 207 1/2" (17' 3 ½ ")
Overall Length without Approach Ramps 175 ½" (14' 7 ½")
Approach Ramps 36 3/8" (3' 3/8")
Total Runway Width 21 1/4" (1' 9 1/4 ")
Runway Length 165 1/2" (13' 9 ½ ")
Runway Thickness 5 1/4"
Width Between Runways 37 3/8"
Width Between Runway Rails 31 3/4"
Outside Runway to Outside Runway 74 3/4" (6' 2 ¼")
Clearance Under Runways 79" (6' 7")
Size of Column 6 1/4" x 3 3/8"
Clearance Between Columns 94 3/8" (7' 10 3/8")
Base of Column 9 5/8" x 11 1/2"
Height of Columns 98 1/2" (8' 2 1/2")
Maximum Wheel Base 153 ½" (12' 9 ½")
Drive Thru (Outside of tire to outside of tire) 80 ½ " (6' 8 ½ ")
Cable Diameter .350"
Gauge Of Steel 6 Gauge (.1875"/ 3/16" / 4.75mm)
Motor 110 Volt. A 30 amp breaker is required.
Oil Requirement 3-5 Gallons AW32/AW46
Shipping Weight 1,739 LB.




Atlas® Garage Pro 8000 EXT-L Portable 8,000 Lbs. Capacity 4 Post Lift (EXTRA TALL, EXTRA LONG) - $3,495.00
  • 2 Year Structural/1 Year Hydraulic Limited Warranty
  • Includes Caster Kit With Polyurethane Caster Wheels
  • Single Point Lock Release
  • CE Tested And Approved
  • Double Lock Safety System
  • Garage Pro 8000 EXT-L Installation
  • Includes Approach Ramps
  • Includes Drip Trays
  • Includes Heavy Duty Jack Tray
  • Includes Rubber Wheel Chocks
  • Includes Wheel Stops
  • Lock Ladder Column Design

Atlas® Garage Pro 8,000 EXT-L (extra long and slightly wider) Service/Storage Lift. This lift is 20 inches longer (wheelbase) and 3 inches wider than the Atlas® Garage Pro 8000 EXT. Or to compare to the original, this lift is 20 inches longer (wheelbase), 3 inches wider, and 14 inches taller than the Atlas® Garage Pro 8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except duallys. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the Atlas® Garage Pro 9000 or the Atlas® 409-HP if you need a portable lift for your dually!

The portable Atlas® Garage Pro 8000 EXT-L includes a caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes and requires no tools.

All Atlas® portable four post lifts (8,000 lb. capacity) are designed and built for use by Mr. Homeowner or restoration shops. These lifts are not designed to work in commercial repair shops that raise and lower a lift several times per day. If you have questions about which Atlas® lift will best suit your application, please ask your salesperson.

Atlas® Garage Pro 8000 EXT-L Specifications

Capacity 8,000 LB
Lifting Height 84 ½" (7' ½")
Overall Width (Without Motor) 108" (9')
Overall Width (With Motor) 116 ½" (9' 8 ½")
Length Between Columns 176 ½" (14' 8 ½")
Overall Length with Approach Ramps 227" (18' 11")
Overall Length without Approach Ramps 195" (16' 3")
Approach Ramps 36 3/4" (3' 3/4") x 19 5/8" (1' 7 5/8")
Total Runway Width 22" (1' 10")
Runway Length 185" (15' 5")
Runway Thickness 4 ½"
Width Between Runways 38" (3' 2")
Width Between Runway Rails 34" (2' 10")
Outside Runway to Outside Runway 77 3/4" (6' 5 3/4")
Clearance Under Runways Max: 80" (6' 8")
Size of Column 6 ¼" x 3 3/8"
Clearance Between Columns 98" (8' 2")
Base of Column 9 5/8" x 11 ½"
Height of Columns 97 ½" (8' 1 ½"); 100" (8' 4") with Bolts
Maximum Wheel Base 173" (14' 5")
Drive Thru (Outside of tire to outside of tire) 84" (7')
Cable Diameter .350"
Gauge Of Steel 6 Gauge (.1875"/ 3/16" / 4.75mm)
Motor 110 Volt. A 30 amp breaker is required.
Oil Requirement 3-5 Gallons AW32/AW46
Shipping Weight 1,900 LB.

11 Locking Positions
Under Runway

11 Locking Positions
Top Of Runway

(+/ - 2") (+/ - 2")
19" (1' 7") 24 1/4" (2' 1/4")
25" (2' 1") 30 1/4" (2' 6 1/4")
31" (2' 7") 36 1/4" (3' 1/4")
37" (3' 1") 42 1/4" (3' 6 1/4")
43" (3' 7") 48 1/4" (4' 1/4")
49" (4' 1") 54 1/4" (4' 6 1/4")
55" (4' 7") 60 1/4" (5' 1/4")
61" (5' 1") 66 1/4" (5' 6 1/4")
67" (5' 7") 72 1/4" (6' 0 1/4")
73" (6' 1") 78 1/4" (6' 6 1/4")
79" (6' 7") 84 1/4" (7' 1/4")




Atlas Garage Pro 9000 Portable Heavy Duty 9000 Lb Capacity 4 Post Lift - $4,150.00
(EXTRA TALL, EXTRA WIDE)
  • 2 Year Structural/1 Year Hydraulic Limited Warranty
  • Includes Caster Kit With Polyurethane Caster Wheels
  • Single Point Lock Release
  • CE Tested And Approved
  • Double Lock Safety System
  • Garage Pro 9000 Installation
  • Includes Approach Ramps
  • Includes Drip Trays
  • Includes Heavy Duty Jack Tray
  • Includes Rubber Wheel Chocks
  • Lock Ladder Column Design

This Atlas Garage Pro 9000 4 post lift can accommodate a 187" vehicle. The Atlas Garage Pro 9000 has the longest runways (we believe) of any portable 9,000 LB. four post on the market. The Atlas Garage Pro 9000 weighs about 300 LB. more than our Atlas Garage Pro 8000. The Atlas Garage Pro 9000 four post above ground lift incorporates many features that are not found in any of our competitors' four post lifts. This lift is a portable four post lift incorporating polyurethane casters on the caster kit to prevent damage to the garage floor.

The Garage Pro 9000 can lift your pick-up truck or car up to 85 inches in the air. This above ground lift is the perfect choice for parking taller vehicles under your stored vehicle. The commercial grade features of the Garage Pro 9000 make this lift the perfect choice for automotive service center or Mr. Homeowner that needs a PORTABLE professional four post lift at a competitive price.

Atlas® Garage Pro 9,000 Specifications

Capacity 9,000 LB
Lifting Height To Top Of Runway 85" (7' 1")
Overall Length with Approach Ramps 227 1/2" (18' 11 1/2")
Overall Length without Approach Ramps 204" (17')
Length Between Columns 184 1/2" (15' 4 1/2")
Overall Width (With Motor) 131 1/2" (10' 11 1/2")
Overall Width (Without Motor) 123 1/2" (10' 3 1/2")
Approach Ramp Length 31 1/2"
Total Runway Width 21 1/4"
Runway Length 199 1/2" (16' 7 1/2")
Runway Thickness 4 3/4"
Width Between Runways 39 1/4"
Width Between Runway Rails 35 1/2"
Outside Runway to Outside Runway 79" (6' 7")
Clearance Under Runways 80 1/2" (6' 8 1/2")
Size of Column 7 1/2" x 4 1/2"
Clearance Between Columns 110 1/2" (9' 2 1/2")
Base of the Column 11 1/2" x 11 1/2"
Height of Columns 95 3/4" (7' 11 3/4")
Maximum Wheel Base 187" (15' 7")
Drive Thru (Outside of tire to outside of tire) 97 1/4" (8' 1 1/4")
Cable Diameter .4375" (7/16")
Gauge Of Steel 5 Gauge (.2" / 1/5" / 5mm)
Motor 110 Volt. A 30 amp breaker is required.
Oil Requirement 3-5 Gallons AW32/AW46
Shipping Weight 2,300 LBS.

Locking Positions Under Runway
(+/ - 2")
Locking Positions Top Of Runway
(+/ - 2")
20 1/2" (1' 8-1/2") 25 1/2" (2' 1-1/2")
26 1/2" (2' 2-1/2") 31" (2' 7")
32 1/2" (2' 8-1/2") 37" (3' 1")
38 1/2" (3' 2-1/2") 43" (3' 7")
44" (3' 8") 49" (4' 1")
50 1/2" (4' 2-1/2") 55" (4' 7")
56 1/2" (4' 8-1/2") 61" (5' 1")
62 1/2" (5' 2-1/2") 67" (5' 7")
68 1/2" (5' 8-1/2") 73" (6' 1")
74 1/2" (6' 2-1/2") 79 1/4" (6' 7 1/4")
80 1/2" (6' 8-1/2") 85" (7' 1")

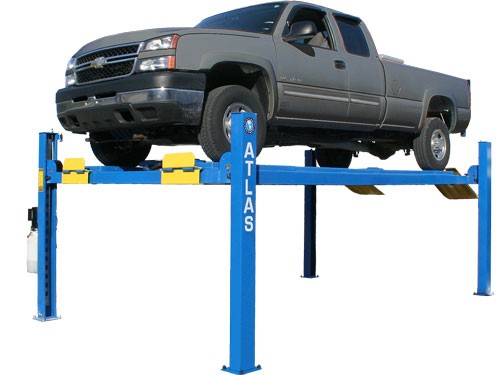

Atlas 412 12,000 LB. Four Post Lift - Call for pricing

Features:
The Atlas 412 (12,000 LB. capacity four post lift) incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas 412 is tested to ensure that this lift system will perform flawlessly at its rated capacities. The Atlas 412 has been manufactured to the same exacting specifications for many years.

The Atlas 412 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

The Atlas 412 four post lift incorporates a lock ladder system in each column and all four column locks are simultaneously air activated from the power unit column. The runways are bolted to the cross tubes, but can be adjusted (moved in) if needed.

  • Air operated single point lock release
  • Mounting Hardware Included
  • 5 Year Structural, 2 Year Power Unit and Cylinders Warranty
Atlas 412 Four Post Lift
Capacity 12,000 LB.
Lifting Height 75 ½" (6' 3 1/2")
Overall Width of Columns (Without Motor) 126” (10' 6")
Overall Width of Columns (With Motor) 135” (11' 3")
Overall Length with Approach Ramps 230” (19' 2")
Overall Length without Approach Ramps 200” (16' 8")
Length Between Columns 184 ¼” (15' 4 ¼")
Runway Length 186 ½" (15' 6 ½")
Runway Width 22" (1' 10")
Thickness of Runway 7”
Width Between Runways 44 ½" (3' 8 ½")
Width Between Runway Rails 42" (3' 6")
Outside Runway to Outside Runway 84 ¾” (7' ¾")
Clearance Under Runways 68 ¼” (5' 8 ¼")
Column Dimension 7" x 5"
Base of Column 10 1/8” x 9”
Clearance Between columns 112 ¼” (9' 4 ¼")
Height of Columns 82” (6' 10")
Maximum Wheel Base 185" (15' 5")
Drive Thru 98 ½” (8' 2 ½")
Cable Diameter 1/2"
Motor 2 HP, 220 Volt, Single phase
Shipping Weight 2,650LB.




Pro 14K- Call for pricing
  • 14,000 lb. capacity four post lift
  • Five year structural warranty
Pro 14K Specifications
Capacity 14,000 LB.
Lifting Height 74" (6' 2")
Overall Width of Columns (Without Motor) 131” (10' 11")
Overall Width of Columns (With Motor) 141” (11' 9")
Overall Length with Approach Ramps 245” (20' 5")
Overall Length without Approach Ramps 214” (17' 10")

4-Wheel Alignment Wheelbase
With Optional Alignment Kit (Not Included)

Maximum 155 in.
Minimum  94 in.

2-Wheel Alignment Wheelbase
With Optional Alignment Kit (Not Included)
Maximum 163 in.
Minimum  88 in.
Length Between Columns 189” (15' 9")
Runway Length 206" (17' 2")
Runway Width 21 1/2" (1' 9 1/2")
Thickness of Runway 6 1/4”
Width Between Runways 43" (3' 7")
Width Between Runway Rails 39 1/2" (3' 3 1/2")
Outside Runway to Outside Runway 83” (6' 11")
Clearance Under Runways 67 ” (5' 7")
Column Dimension 9 ” x 6”
Base of Column 10 1/2” x 14 1/4”
Clearance Between columns 115” (9' 7")
Height of Columns 89” (7' 5")
Outside Column to Outside Motor 139” (11' 7")
Maximum Wheel Base 190" (15' 10")
Drive Thru Clearance 99 1/2” (8' 3 1/2")
Cable Diameter 1/2"
Gauge Of Steel 5 gauge (.2”, 5 mm)
Motor 2 HP, 220 Volt, Single phase
Shipping Weight 3,050LB.

Atlas RJ-70 Rolling Jack- $2,075.00
The RJ-70 is a rolling jack that is compatible with the Atlas Pro 14k Lift.

Features

  • Air/Hydraulic
  • 7,000 LB. capacity
  • Heavy duty / commercial grade
  • Scissor mechanism allows for level lifting
  • Compact size with a low profile
  • Adapters included
  • Safety lock positions
  • Smooth rolling action
  • Adapter storage
  • Powder coated finish

The Atlas RJ-70 is a heavy duty rolling jack designed to lift and support 7,000 LB. The commercial grade RJ-70 rolling jack is used to raise the front or rear portion of a vehicle allowing the operator of a four post above ground lift to perform wheel and brake service. Most commercial shops buy two of these hydraulic rolling jacks, so that the entire vehicle can be supported in the air at the same time

The Atlas RJ -70 is the perfect accessory to our Atlas Pro14K four post lift.

RJ-70 Specifications
Maximum Width 62 1/2"
Minimum Width 37"
First Locking Position 9 3/4"
Second Locking Position 14"
Maximum Lifting Height 15 1/8"
Small Adapter 3"
Large Adapter 6"
Maximum Capacity 7,000 LB.
Shipping Weight 350 LB.

Atlas RJ-35- $1,095.00
  • 3,500 LB. capacity
  • Manually operated
  • Scissor mechanism allows for level lifting
  • Compact size with a low profile
  • Adjustable width fits most four post lifts
  • Safety lock positions
  • Adapters included
  • Powder coated finish
  • Commercial grade
  • Adapter storage
  • Shipping Weight: 350 LBS.

The Atlas® RJ-35 (3500 LB. capacity) sliding hydraulic vehicle jack is the perfect choice for the owner of the Atlas® Garage Pro 8000. The Atlas® RJ-35 Sliding Jack will also fit the Atlas® Garage Pro 9000. The Atlas® RJ-35 Sliding Jack is for those who want to perform wheel service on a vehicle that is positioned on top of their four post lift.

The complete Atlas® Garage Pro 8000 four post lift comes with a jack tray. The jack tray has certain limitations that are eliminated by using the Atlas® RJ-35 Sliding Jack. The jack tray (with a small floor jack or jack stands) will support ONLY THOSE LIFTING POINTS of the raised vehicle that are between the runways of the Atlas® Garage Pro 8000 four post lift. The Atlas® RJ-35 Sliding Jack has telescoping arms that can be extended over the runways of the four post lift. The lift pads at the end of these arms can be positioned under the LIFTING POINTS (that are located over the runways of the four post lift) of the vehicle allowing the operator to access many more LIFTING POINTS than just using the jack tray.

The Atlas® RJ-35 Sliding Jack comes standard with a set of peg style truck adapters which increase the lifting height of the lift pads. These truck adapters will allow the Atlas® RJ-35 Sliding Jack sliding hydraulic jack to raise pick up trucks that will sit higher on the runways than the average passenger car. The Atlas® RJ-35 Sliding Jack is operated by a manual hydraulic pump (porta-power pump) and does not require an air compressor for power. The Atlas® RJ-35 Sliding Jack sliding hydraulic jack also features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions of the Atlas® RJ-35 Sliding Jack are engaged, the hydraulic pressure from the lifting cylinder of the RJ-35 Sliding Jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).

Finally, the versatile Atlas® RJ-35 Sliding Jack is adjustable to fit between the runways of many of the other four post lifts that have been sold in the last several years.

Atlas® RJ-35 Sliding Jack Specifications

Capacity 3,500 LB.
Minimum Width 29 1/2"
Minimum Width with Arms In 39 1/2"
Maximum Width with Arms Out 64 3/4"
Minimum Height with Lift Pad 3 1/2"
Lifting Pad 1 3/8"
Short Adapter 1 1/4"
Tall Adapter 5"
Raised Height without Adapter 11"
Raised Height with Small Adapter 12 1/4"
Raised Height with Large Adapter 16"
Raised Height with Small and Large Adapter 17 1/4"
Shipping Weight 350 LBS.






Clarke's Southern Truck Parts
About Us :: Our Products :: Our Services :: Contact Info :: Maps :: Email Us :: Home
