All lifts come with a step by step instruction manual. Delivery and installation charges are extra please call for pricing.


Click on images to enlarge.

  • 9,000 lb lifting capacity
  • Asymmetric design
  • Dual cylinders with low friction chain rollers
  • Low profile automatic arm restraints
  • Stackable drop-in height adapters
  • Free mounting hardware
  • Powder-coated paint finish
  • Electric override automatic safety shut-off
Specifications:

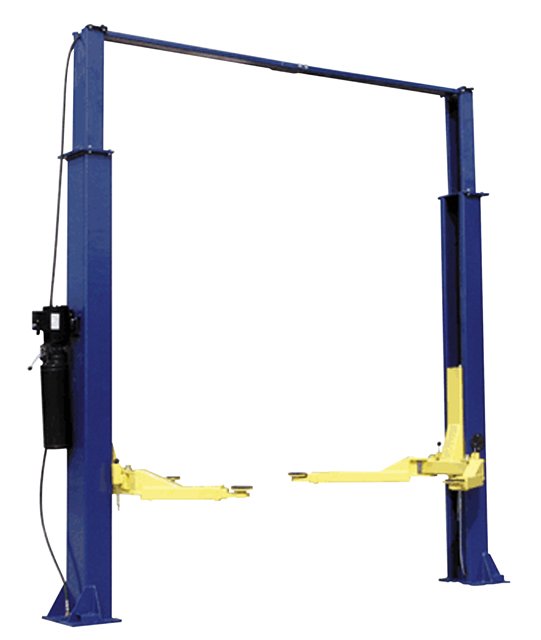

Model Number TP9KAC
Capacity 9,000 lbs
Lifting speed 50 seconds
Motor rating 2HP 220V 20A
Width overall 134"
Height overall 142"
Lifting height 70.5"
Lifting height(with ext.) 75.5"
Low pad height 4.5"
Width between columns 109"
Drive thru 92"
Shipping weight 1400 lbs
  • 9,000 lifting capacity
  • Symmetric design
  • Dual cylinders with low friction chain rollers
  • Low profile automatic arm restraints
  • Stackable drop-in height adapters
  • Free mounting hardware
  • Powder-coated paint finish
Specifications:

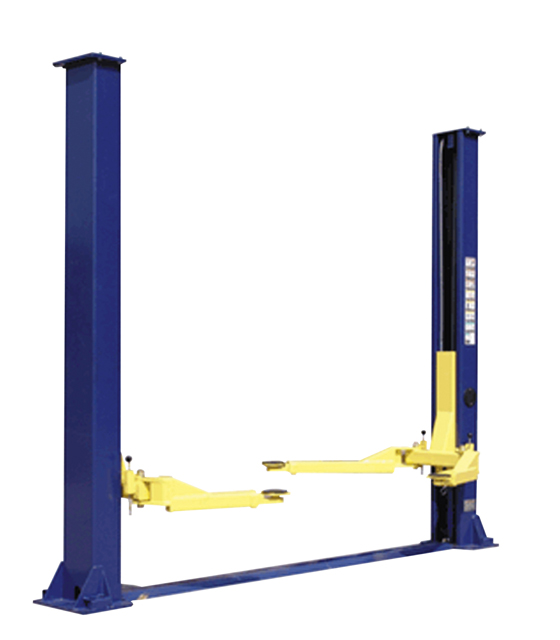

Model Number TP9KF
Capacity 9,000 lbs
Lifting speed 50 seconds
Motor rating 2HP 220V 20A
Width overall 134"
Height overall 111.5"
Drive thru width 92"
Raised height(no ext.) 70.5"
Raised height(with ext.) 75.5"
Low height 4.5"
Shipping weight 1320 lbs
  • EXTRA WIDE LIFT(152")
  • 30 degree rotated columns for true asymmetric design.
  • Triple telescoping arms.
  • Dual cylinder direct pull lifting. No chains or roller bearings to wear out.
  • Single piece column. Continuous rolled steel column.No sheet metal.
  • One-piece cross beam
  • Padded override safety rod shut off system.
  • Extra long carriage (44"). Puts less stress on slider blocks.
  • Cylinder protected by carriage when lowered.
  • Stackable truck adapters standard.
  • Powder coat paint finish.
Specifications:

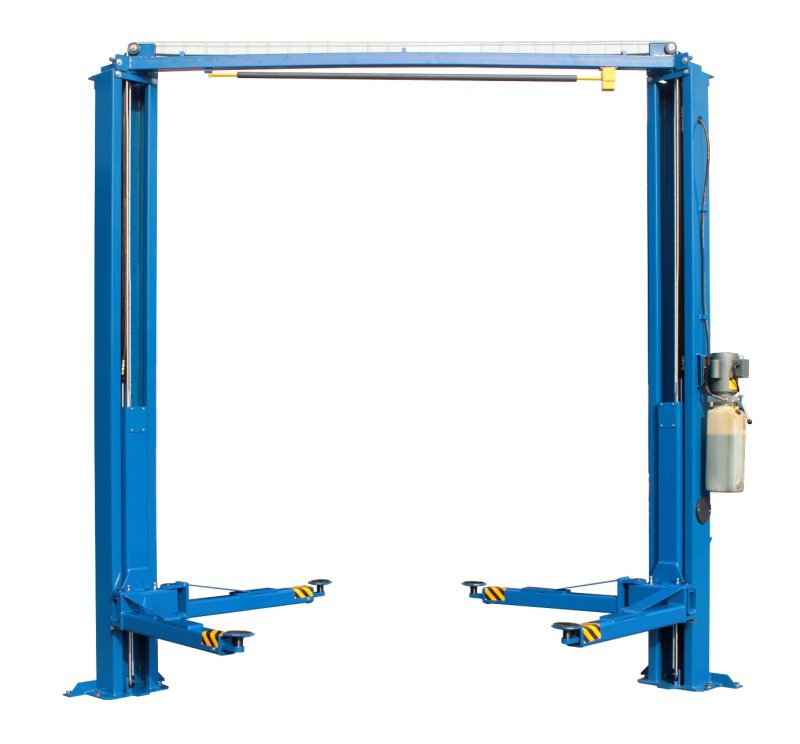

Model Number TP10KC-DTC
Capacity 10,000lbs
Overall Height 144"
Overall Width 152"
Lifting height 4" - 70"
Front arm ext. 25 1/2" - 50"
Rear arm ext. 34 1/2" - 73"
Drive through width 105"
Width between columns. 116"
Truck adapters 1 5/8",3",6"
Net weight 1683lbs
  • Dual cylinders with low friction chain rollers
  • Automatic arm restraints
  • Electric override. Auto safety shut-off
  • Powder coated paint finish
Specifications:

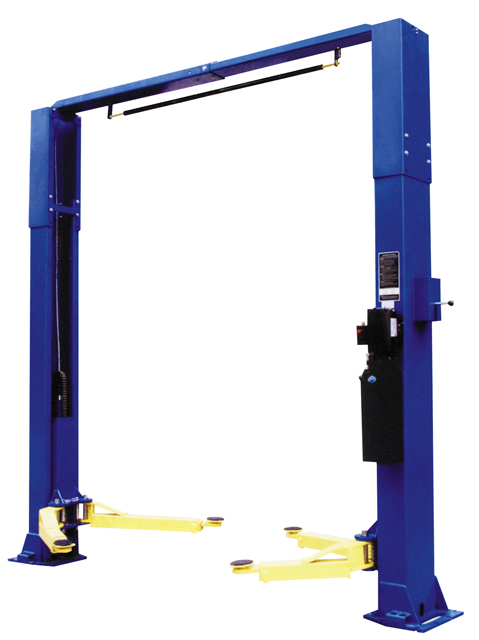

Model Number TP11KAC
Capacity 11,000 lbs
Lifting speed 50 seconds
Motor rating 2HP 220V 20A
Lifting height 70.25"
with adapters 76"
Low pad height 4.5"
Width overall 137"
Width between columns 110.5"
Drive thru 90.5"
Height overall 141" or 145.5"
Shipping weight 2020 lbs
Atlas OH9000 - $2,295.00

The Atlas OH 9000 has dual piece adjustable height columns. The Atlas 9000 can be installed under a 12’ ceiling and if you have the room...the overhead support can be raised all the way to 12’ 6 ½” for maximum lifting capabilities for tall vehicles.

Super-Symmetric Arm Configuration: Our super symmetric arm configuration is a great improvement over the traditional asymmetric or symmetric arm configuration.

Direct Drive Cylinders: Low pressure direct drive cylinders in each column attach to a unique carriage design. Direct drive cylinders are more efficient and last longer than the chain over half cylinders found in many low priced two post lifts.

Includes Three Piece Truck Adapter Set: The Atlas OH 9000 comes standard with a three piece truck adapter set. The Atlas OH 9000 (with the entire truck adapter set installed) can lift a vehicle up to 82.5”. The three piece truck adapter set offers many more lift height combinations than standard two piece truck adapter sets.

Single Point Lock Release: The Atlas OH 9000 two post lift has single point release which makes it easy for the operator to unlock both column locks from one column.

Overhead Bar Configuration: The overhead bar configuration of the Atlas OH 9000 leaves the floor area between the columns open, and allows the operator to easily roll a transmission jack or a tool box under the car.

Padded Automatic Shut-Off Bar: The padded shut-off bar located below the cross beam prevents the top of the vehicle from being damaged by hitting the cross beam. The padded bar, which contacted automatically shuts of the motor on the power unit to prevent the vehicle from being lifted.

Symmetric Columns: The symmetric column design provides a much wider drive through than the asymmetric designed columns.

Packaging: The Atlas OH 9000 is packaged in a metal frame that can be hauled in the bed of most standard pickup trucks.

Electrical Requirement: The electric motor for the power unit requires 220 Volt (single phase) 60 Hz. We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit has a short pigtail (no plug) that can be wired to either a quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is recommended. Click here to read more...

Installation: Most of our above ground lift customers install their own car lifts. The average time to install the Atlas OH 9000 car lift is four hours. We provide detailed installation instructions with all our two post above ground lifts and our four post above ground lifts.

Options: The Atlas OH9000 is now adjustable! You can add an additional 2 feet (24 inches) to the height of your Atlas OH 9000 cross bar to accommodate taller vehicles...or you can add 6 extra inches of width between the columns to allow extra wide vehicles and extra wide trailers to be pulled through.

The Atlas EXH9 kit and the Atlas EXW9 kit can be purchased with your new Atlas OH 9000 or at a later date if you find the need to increase the height or the width of your Atlas OH 9000.

Features
  • Super-Symmetric Arms (better than asymmetric)
  • Adjustable Height Columns
  • Symmetric Columns
  • Overhead Design
  • Atlas Power Coat powder coat finish
  • 9,000 lb. capacity
  • Clear Floor Design
  • Free Truck Adapters
  • Mounting Hardware Included
  • 5 Year Structural Warranty, 2 Year Power Unit Warranty
Atlas OH9000 Specifications
Setup Low High
Capacity 9,000 LB.
Lifting Time Ask Your Salesperson
Overall Height 143 ¾" (11' 11 ¾") 150 ½" (12' 6½")
Padded Bar Height 136 ¼" (11' 4 ¼") 143" (11' 11")
Overall Floor Width 135" (11' 3")
Outside Column to
Outside Column		 125 ¾ (10' 5 ¾")
Maximum Lift Height
(Without Adapters)		 66 ½" (5' 6 ½") 72 3/8" (6' 3/8")
Maximum Lift Height
(With Adapters)		 77" (6' 5") 82 7/8" (6'10 7/8")
Minimum Pad Height 4"
Inside Column 112 1/8" (9' 4 1/8")
Column Size 6 ¾" x 10 5/8"
Column Thickness of Steel .15"
Drive Thru 97 ¼" (8' 1 ¼")
Base Of Lift 15 5/8" x 17 5/8"
Cable Diameter .367"
Motor/Electrical
Requirement		 2HP, 220 volt
single (1) phase
A 30 amp breaker is
recommended

Shipping Weight 1,460 LBS.

Requires a minimum of 4" of concrete with 3000 psi.
All lifts come with a step by step instruction manual.

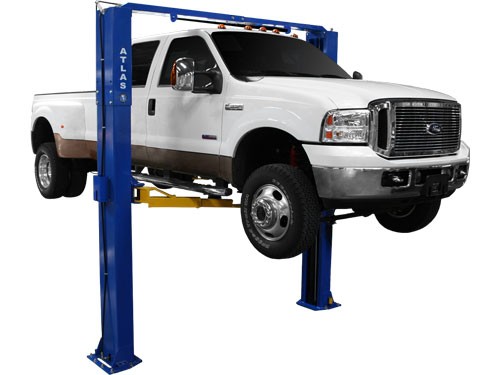

Atlas PV-10P - $2,795.00

The Atlas PV-10P is the perfect choice for use in either a large commercial service department or for the "pole barn" owner who wants the "biggest and baddest" lift in the county. The Atlas PV-10P is designed and engineered to safely lift (and work on) everything from a Smart Car ® to a one ton diesel dually.

The Atlas PV-10P (the "P" means "padded") incorporates a "padded" shut-off bar to protect the top of the vehicle from contacting the crossbar. The carriages are equipped with "padded" protective (thick rubber) covers to help prevent the vehicle’s doors from damage if opened into the columns or carriages.

The truck adapter set has been augmented (12 pieces vs. 8 pieces) and the rubber lift pad has been reinforced to ensure a solid contact with the vehicle’s lifting point.

Hydraulic Cylinder Configurations: A newly designed cylinder configuration for the Atlas PV-10P lift.

There are two popular hydraulic cylinder configurations used in two post electric/hydraulic above ground lifts:

Versatility: The PV-10P two post car lift is designed to offer that extra amount of lifting capacity to safely lift dual wheel pick up trucks or fully loaded ¾ ton or ½ ton pick up trucks. The Atlas PV-10P also offers an extremely low lift pad position on the versa-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks.

The peg style truck adapters included with the Atlas PV-10P two post car lift are necessary to lift vehicles with running boards. The Atlas PV-10P peg style truck adapters (12 extensions) can be combined to raise the lift pads to reach the frame of most pick up trucks without damaging the running boards.

The Atlas PV-10P has symmetrical columns and includes a set of versa-metric arms. These arms can be configured into the symmetrical position to lift a full loaded pick up truck OR these arms can be configured to the asymmetric position to offer easier opening of the front door on some vehicles.

The Atlas PV-10P two post above ground lift has single point release, overhead above ground configuration, versa-metric arm configuration. The Atlas PV-10P car lift is powered by a 220 Volt (single phase) power unit.

Flow Restrictor: Many of our two post and four post lifts manufactured in our off shore factory (after 08-01-07) have flow restrictor valves installed in the hydraulic system. Some lifts do not require a flow restrictor.

Electrical Requirement: The electric motor for the power unit requires 220 Volt (single phase) 60 Hz. We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit has a short pigtail (no plug) that can be wired to either a quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is recommended.

The electric motor for this power unit requires 220 Volt (single phase) 60 Hz. We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit has a short pigtail (no plug) that can be wired to either a quick disconnect box (mounted on the lift column) or to a male/female plug combination.

We recommend that the power unit to NOT BE HARDWIRED directly to the main supply power cord. There should be some type of "quick disconnect" in close proximity to the power unit.

The 220 volt (single phase) motor will run on a 208 volt to a 240 volt power supply. Rule of thumb is that a 220 volt motor will operate effectively within a 10% plus or minus range of the supplied voltage. Based upon that assumption, a 220 volt motor will operate within a range of about 200 volts to 242 volts.

The 220 volt electric motor that is used on the power unit may vary between 1.5 HP. - 3 HP. The horsepower rating of the motor will not influence the "lifting power" of the lift. The motor is used to pressure a hydraulic pump. The pressure level of the hydraulic pump is preset to provide the correct amount of hydraulic pressure for the lift to work properly.

Motor manufacturers recommend that you use (wire the lift) a 30 amp service for this power unit. Power unit manufacturers use motors from several different electrical motor manufacturers. The 30 amp electrical service will provide enough power for the motor to operate properly, and also protect the motor from damage.

Installation: The Atlas PV-10P two post car hoist should be installed on a solid concrete floor. This PV-10P concrete floor should have a minimum of four (4) inches of concrete with 3000 PSI. The Atlas comes with the mounting hardware to anchor your two post lift to the appropriate concrete floor.

Most of our above ground lift customers install their own car lifts. The average time to install the Atlas PV-10P car lift is four hours.

We provide detailed installation instructions with all our two post above ground lifts and our four post above ground lifts.

Safety Labels: In a concerted effort to improve customer awareness as to the correct operation of our two post and four post above ground lifts, the factory is affixing the ANSI (ALI/101S) safety labels to our Atlas and Direct above ground vehicle lifts (after 08-01-07). These ANSI (ALI/101S) safety labels help to alert the operator as to certain potential dangers that may exist in the normal operation of the lift.

Features
  • Commercial Grade
  • Single Point Lock Release
  • Versa-Metric Arms
  • "Padded" Shut-off Bar
  • Thick rubber covers on carriages
  • Atlas Power Coat powder coat finish
  • Adjustable Height - 11'10" or 12'2"
  • Free 12 piece truck adapter set
  • Mounting Hardware Included
  • 5 Year Structural Warranty, 2 Year Power Unit Warranty
Atlas PV-10P Specifications
Setup Low High
Capacity 10,000 LB. 10,000 LB.
Lifting Time Ask Your Salesperson Ask Your Salesperson
Overall Height 142" (11' 10") 146" (12' 2")
Overall Width 137-3/8" (11' 5 3/8") 137-3/8" (11' 5 3/8")
Outside Column to Outside Column 125" (10' 5") 125" (10' 5")
Maximum Lift Height 79"
Minimum Pad Height 4"
Between Columns 110-3/4" (9' 2 3/4") 110-3/4" (9' 2 3/4")
Column Size 14 1/2" x 7 1/2"
Column Thickness of Steel 2 gauge (.24”, 6mm)
Drive Thru
Symmetric/Asymmetric Configuration		 96" (8')
90" (7' 6")		 96" (8')
90" (7' 6")
Base of Lift 17 1/2" x 20 1/2"
Height Shut-Off 136" (11' 4") 140" (11' 8")
Cable Diameter .375"
Motor/Electrical Requirement 2HP, 220 volt single (1)
phase. A 30 amp breaker is recommended
Shipping Weight 1,875LB

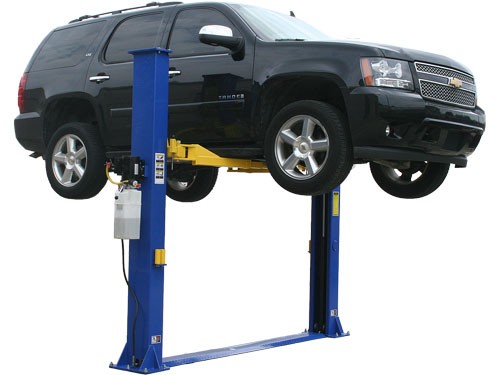

Atlas 9KBP - $2,295.00

Description: The Atlas 9KBP is a base-plate two-post lift designed for low ceiling garages. The total column height of 111 ½" (9 feet 3 ½ inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches.

Where Do I Position My Two Post Lift In My Garage? There are many factors that will determine the best place to mount your two post lift. This and other frequently asked lift positioning related questions are answered here.

Symmetric Columns and Arms: The Atlas 9KBP includes a symmetric column configuration to offer the widest possible Drive Thru. The Atlas 9KBP baseplate above ground lift has symmetric arms to allow easy access to both sides of the vehicle. The Atlas 9KBP also includes two additional lifting pads that offer an infinite amount of lifting points for the rear lift arms.

Electrical Requirement: The electric motor for the power unit requires 220 Volt (single phase) 60 Hz. We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit has a short pigtail (no plug) that can be wired to either a quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is recommended.

Installation: Most of our above ground lift customers install their own car lifts. The average time to install the Atlas 9KBP car lift is four hours. We provide detailed installation instructions with all of our two post above ground lifts and our four post above ground lifts.

Features
  • Symmetric Arms
  • Base plate Design
  • 9,000 lb. capacity
  • Designed for low ceiling clearance - 9' 3 ½" columns
  • Free Truck Adapters
  • Mounting Hardware Included
Atlas 9KBP Specifications
Capacity 9,000 LB.
Lifting Time Ask Your Salesperson
Overall Height 111 ½" (9' 3 ½")
Overall Floor Width 134 ½" (11' 2 ½")
Outside Column to Outside Column 124 7/8" (10' 4 7/8")
Maximum Lift Height 74 ½" (6' 2 ½")
Minimum Pad Height 4"
Base Plate Width 10 ¾"
Inside Column 110" (9' 2")
Drive Thru 101" (8' 5")
Column Size 7 1/4" x 11 1/8"
Column Thickness of Steel 5 gauge (.2”, 5.08mm)
Cable Diameter .375"
Base Of Lift 13 ½" x 18 ¼"
Motor/Electrical Requirement 2.5HP 220 volt single (1) phase.
A 30 amp breaker is recommended
Shipping Weight 1,400 LB.
Requires a minimum of 4” of concrete with 3000 psi.
All lifts come with a step by step instruction manual.

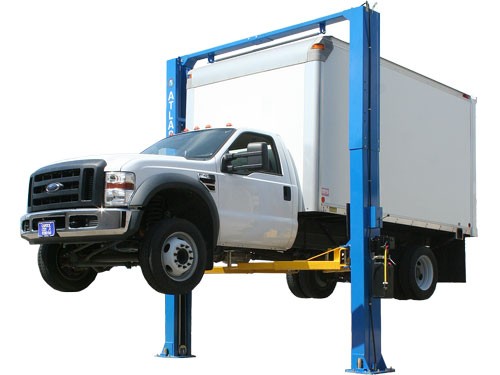

Atlas PV-12P - $3,400.00

Features

  • 12,000 LB. capacity
  • Commercial grade
  • Single point lock release
  • Symmetric design
  • Powder coat finish
  • Adjustable to three (3) heights: 12’ 4 1/2”
    (requires the purchase of additional shorter cables),
    13' 7 1/2”, and 14’ 7 1/2”
  • Free 12 piece truck adapter set
  • Anchor bolts included
  • 5 Year Structural Warranty,
    2 Year Power Unit Warranty

Atlas PV-12P Specifications

Setup Low Middle High
Capacity 12,000 LB.
Lifting Time Ask Your Salesperson
Overall Height 148 ½"
(12' 4 ½")*		 163 ½"
(13' 7 ½")		 175 ½"
(14' 7 ½")
Height To Shut Off Bar 142"
(11' 10")*		 157"
(13' 1")		 169"
(14' 1")
Overall Width 158" (13' 2")
Overall Width
(Without Motor)		 150 ¼" (12' 6 ¼")
Outside Column to
Outside Column		 138 ¾" (11' 6 ¾")
Maximum Lift Height
(With Truck Adapters)		 82" (6' 10")
Maximum Lift Height
(Without Truck Adapters)		 71 ½" (5' 11 ½")
Minimum Arm Height 4 1/2"
Between Columns 122 5/8" (10' 2 5/8")
Column Size 14 3/8" x 7 5/8"
Column Thickness of Steel 2 gauge (.24", 6mm)
Drive Thru 108 5/8" (9' 5/8")
Base of Lift 17 ½" x 20 ½"
Cable Diameter .375"
Cylinder Diameter 2.6"
Motor/Electrical Requirement 4 HP, 220 volt single (1) phase
A 30 amp breaker is recommended.
Oil Requirement 3-5 Gallons AW32/AW46
Shipping Weight 2,100 LB.

*Requires the purchase of additional shorter cables.

Requires a minimum of 6" of concrete with 3000 psi.
