Equipment> Transmission Jacks



HTTMJ3-2.jpg (25815 bytes)1,000 LB. Capacity 2 Stage Air/Hyd. Transmission Jack - $529.00

This two stage transmission jack has everything that the hydraulic version does but also features the ease of being air powered. Raising the cradle into position using air saves both time and effort.

  • 1,000 LB. Capacity
  • Air/Hydraulic operated
  • Fully lowered – 3’ ½” (36 ½”)
  • Fully raised – 6’ 3” (75”)
  • Stage one fully extended – 4’ 9” (57”)
  • Swivel casters allows for easy maneuverability
  • Universal adjustable saddle
  • Saddle: 2 way tilt (front-to-back) with side shift
  • Safety chain and brackets included
  • Foot operated pedals for raising and lowering
  • Shipping Weight - 217 lbs.
  • Shipping Dimensions: 35" x 15" x 22"

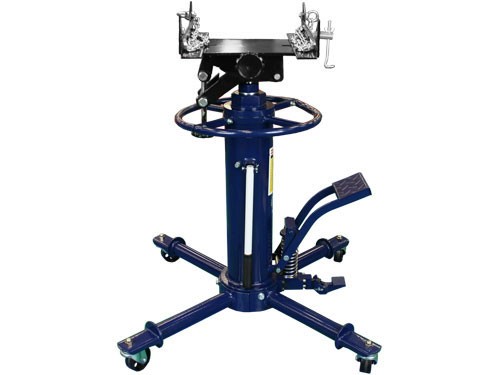

1,000 LB. Capacity 2 Stage Hydraulic Transmission Jack - $429.00


This heavy duty two stage transmission jack features 4 swivel casters for maneuverability and both a ring handle and a pull bar for easier movement. The foot operated pump and release valve keep the mechanic’s hands free during use. The height adjustability of this telescoping transmission jack makes it great for any transmission installation or removal.

Features

  • 1,000 LB. Capacity
  • Fully Lowered – 2’ 8 ½” (32 ½”)
  • Fully Raised – 6’ 1 ½” (73 ½”)
  • Stage one fully extended – 4’ 6” (54”)
  • Swivel casters allows for easy maneuverability
  • Universal adjustable saddle
  • Saddle: 2 way tilt (front-to-back) with side shift
  • Safety chain and brackets included Foot operated pedals for raising and lowering
  • Shipping Weight - 168 lbs.

1,000 lb Transmission Jack with Foot Pedal - $225.00

This single stage transmission jack features a foot pump, keeping the operator's hands free during use. The spring loaded release allows for greater control of height when lowering. The long ram increases the range for the working height and makes the single stage transmission jack a great fit for any home or shop.
  • 1,000 LB. Capacity
  • Hydraulic foot pump for easy lifting
  • Minimum height – 51”
  • Maximum lifting height – 83”
  • Swivel casters allow for easy maneuverability
  • Universal adjustable saddle
  • Saddle: 2 way tilt (front-to-back) with side shift
  • Safety chain and brackets included
  • Shipping Weight - 102 LBS.
  • Shipping Dimensions: 44" x 9" x 11 ½"
